7,000 lbs. capacity low rise lift

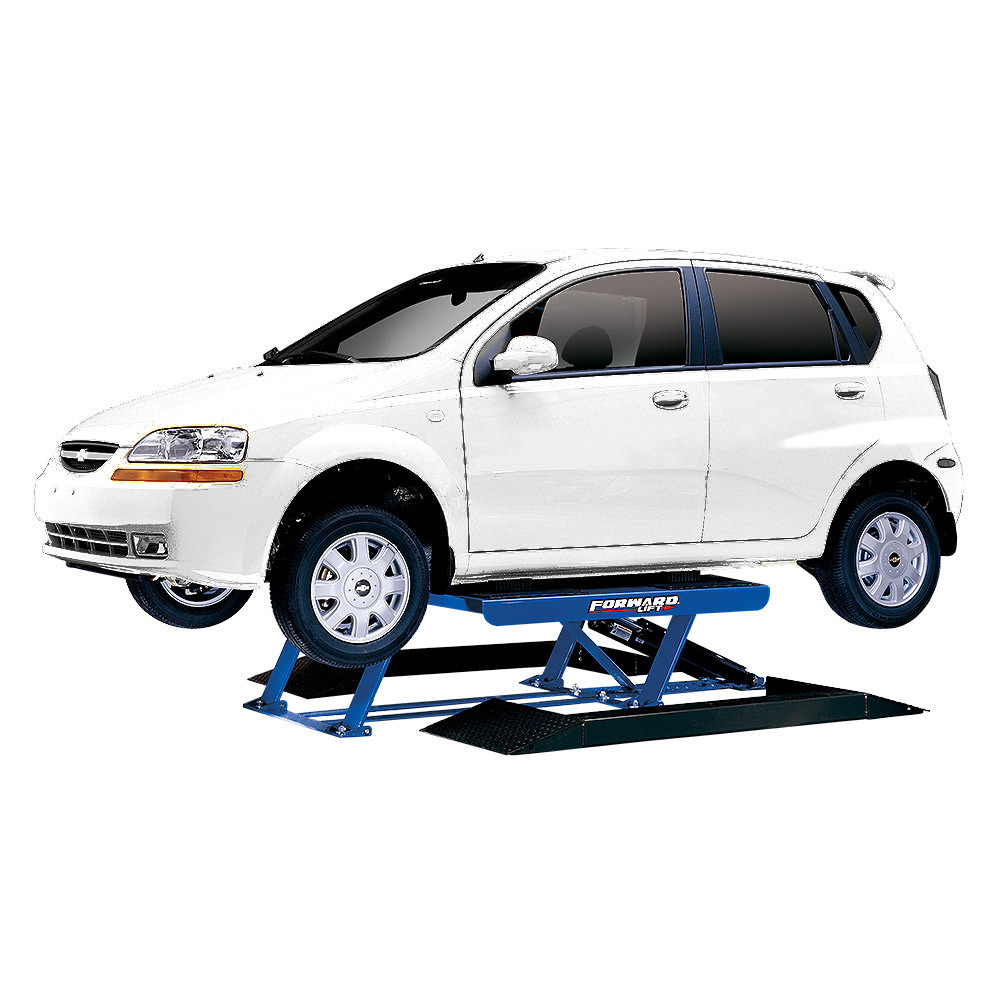

Forward 7000TL | Low-Rise Lift

SKU: 7000TL
Available Colors
Optional Accessories
    • Drive-over ramps and side rails provide the width to support wider vehicles while approaching and exiting the lift
    • Dual lifting cylinders provide the power required to lift a 7,000 lbs. vehicle
    • The 7000TL comes with four 3" rubber blocks and four 1-1/2" rubber blocks
  • Specifications 7000TL
    Capacity 7,000 lbs. (3175kg)
    Length Overall 90-1/2" (2299mm)
    Width Overall 78-1/2" (1994mm)
    Width Between Platforms 22-3/4" (578mm)
    Length of Platforms 51-1/4" (1301mm)
    Length of Pad 17" (7239mm)
    Outside Width of Platforms 70-3/4" (432mm)
    Horizontal Movement (during rise) 16" (406mm)
    Collapsed Heigh 4" (102mm)
    Locking Leg Heights 13-3/8" (340mm), 17-3/8" (441mm), 21-3/8" (543mm)
    Voltage* 115v
    Time of Full Rise 40 seconds
    Rise Tall Pad 24-3/4" (627mm)
    Rise Short Pad 23-1/4" (591mm)
    Rise Flat 21-3/4" (552mm)
    * single phase standard; 3-phase available at additional cost
