14,000 lbs. capacity 4 post lift, open front design.

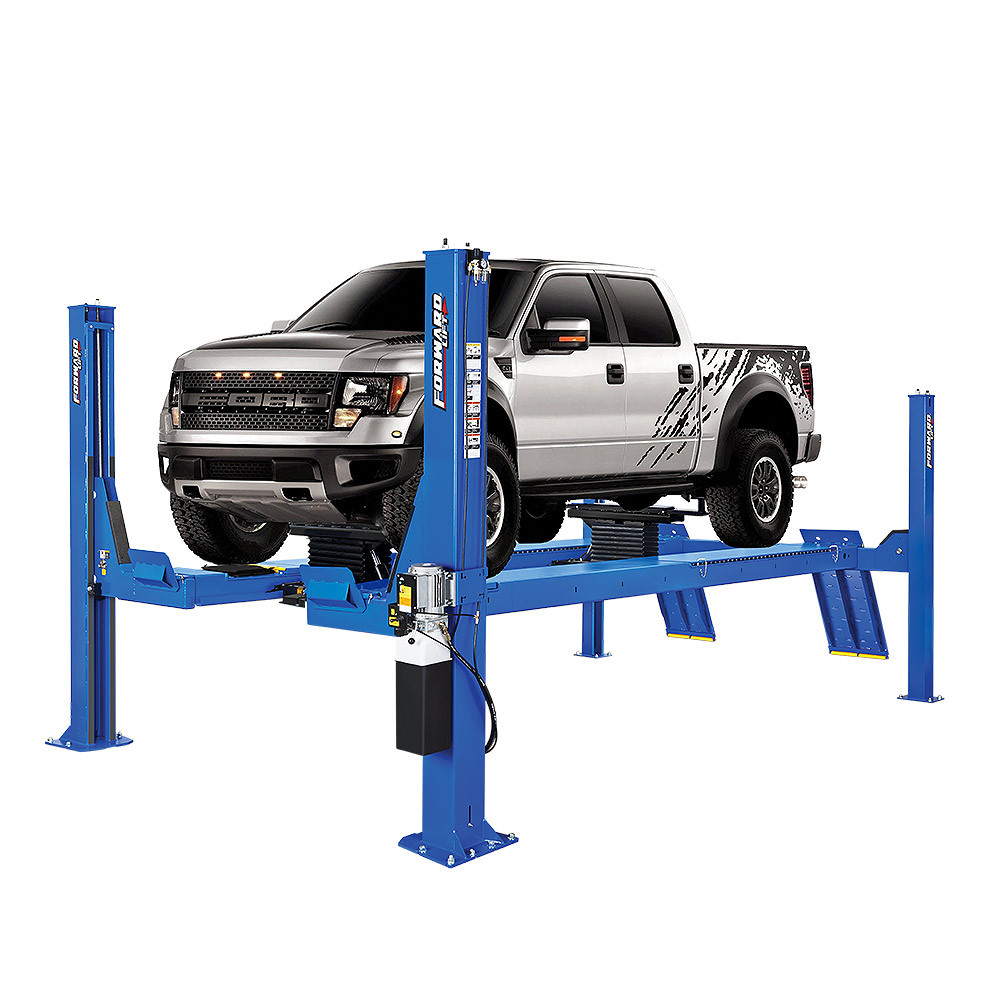

Forward OR14 | Four Post Lift

SKU: OR14
Available Colors
Optional Accessories
    • ALI/ETL Certified
    • Heavy duty hydraulic cylinder
    • 7,000 lbs. capacity rolling bridge jacks
    • Rear wheel slip plates
    • Internal airline standard
    • Front work step standard
    • Turning radius gauges
    • One piece formed runway design incorporates rolling jack channels
  • Specifications OR14
    Capacity 14,000 lbs. (6350kg)
    Rise 78 3/4" (2000mm)
    Maximum Wheelbase 182.5" (4635mm)
    Maximum 2-Wheel Alignment 176 1/4" (4476mm)
    Maximum 4-Wheel Alignment 164 3/4" (4184mm)
    Overall Length 21' 1" (6705mm)
    Overall Width 11' 8-1/2" (3567mm)
    Inside of Columns 116 1/4" (2952mm)
    Between Front and Rear Columns 194 3/4" (4946mm)
    Height of Columns 9' 1-1/16" (2770mm)
    Width of Runways 20" (508mm)
    Height of Runways 7" (178mm)
    Width Between Runways 43" (1092mm)
    Front of Runway to Center of Radius Gauge Adj. 16"-20" (457-609mm)
    Time of Full Rise 79 seconds
    Voltage* 208/230v
    Motor 2HP
    Minimum Bay Size 15' x 26' (4572 x 7925mm)
    * single phase standard; 3-phaseavailable at additional cost
    Specifications subject to change without notice or liability
