The patented operating system of the R501Plus tire changer is one of a kind. With this distinctive design, the changer is equipped with four rollers positioned on both sides of the wheel in diametrically opposite positions. With this system, the dismounting of the tire is a simple operation: while the front bead breakers keep the bead in the drop center, the rear breakers continue their course until the dismounting is complete.

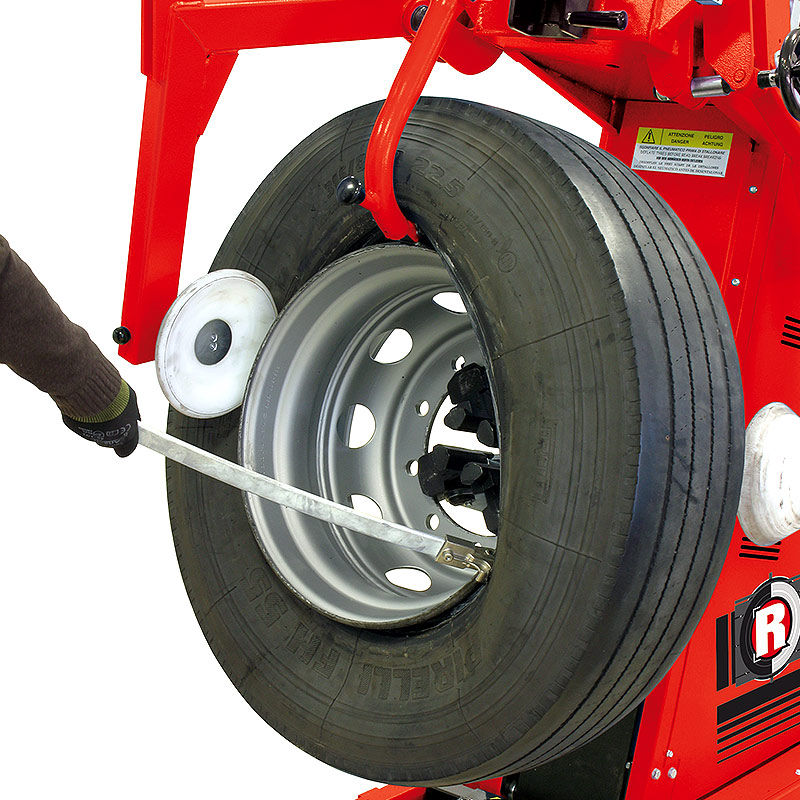

Rotary R501Plus | Super Fast Truck Tire Changer

Quantity
    •  Super Fast Truck Tire Changer

    •  Dismount and mount a Truck Tire in 30 Seconds

    •  Adjustable Arm Position

    •  Speed Mounting

    •  Speed Demounting

    •  Quick Loading

  • Specifications

    TECHNICAL DATA

    R501Plus

    Chucking unit rotation motor

    kW 2

    Hydraulic drive unit motor

    2 Hp / kW 1.5

    Maximum tire diameter

    52” (1320mm)

    Max. allowed wheel width

    21.2” (540mm)

    Weight

    1,240 lbs / 562 kg

    Bead breaker power

    18000 N

    Maximum wheel weight

    2.645 lbs / 1200 kg

    Chuck rotation speed (rev/min)

    8

    Max. torque to chuck

    2600 Nm

    Power supply

    220v / 3Ø / 60 Hz
