Cars. SUVs. Trucks. Vans. They can all drive right onto the SM14 and be in the air in no time. The gold standard of four post lifts, the SM14 is engineered with single-piece, non-welded runways to provide maximum long-lasting strength. Its louvered ramps provide improved traction and come with a powder-coated Hammer Tone paint finish for improved durability. And most importantly, the SM14’s adjustable latch bars ensure that the runways are level at any of the multiple locking positions.

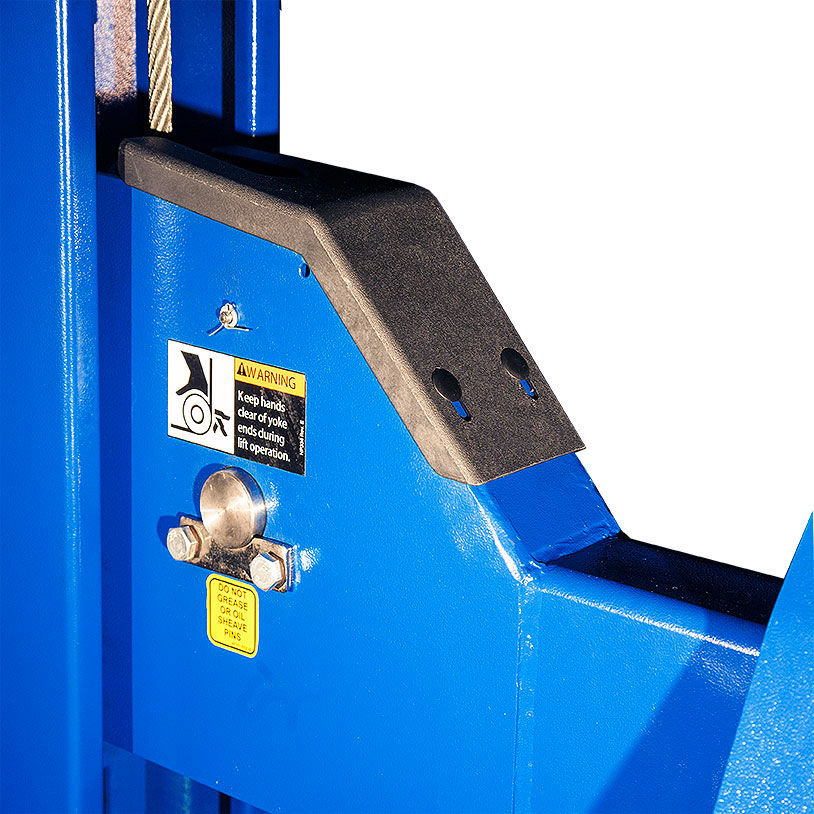

Rotary SM14 | Closed Front Drive On Lift

Available Colors
Optional Accessories
    • 14,000 lbs Capacity
    • Cylinders under the runways protect them from corrosives and physical damage
    • Louvered ramps for improved traction and less floor gouging
    • Polymer rollers protect shop floors and allow for quieter operation
    • Powder-coated Hammer Tone paint finish for longer paint life
    • Adjustable latch bars keep runways level while in locking positions
    • 20” single-piece, non-welded runway with tracks for rolling jacks
    • ALI Gold Certified
  • Specifications

    Model SM14-S SM14-L SM14-EL
    Max Wheelbase 158″ (4013mm) 182″ (4622mm) 215″ (5461mm)
    Rise 78 3/4″ (2000mm) 78 3/4″ (2000mm) 78 3/4″ (2000mm)
    Length Overall 18′ 10″ (5740mm) 20′ 10″ (6350mm) 23′ 7″ (7188mm)
    Width Overall**† 10′ 11 3/4″ (3346mm) 10′ 11 3/4″ (3346mm) 10′ 11 3/4″ (3346mm)
    Inside of Columns** 116 1/4″ (2953mm) 116 1/4″ (2953mm) 116 1/4″ (2953mm)
    Between Front and Rear Columns 171 1/4″ (4349mm) 195 1/4″ (4959mm) 228 1/4″ (5798mm)
    Height of Columns 7′ 6 1/2″ (2299mm) 7′ 6 1/2″ (2299mm) 7′ 6 1/2″ (2299mm)
    Width of Runways 20″ (508mm) 20″ (508mm) 20″ (508mm)
    Height of Runways 7″ (178mm) 7″ (178mm) 7″ (178mm)
    Width Between Runways 43″- 46″ (1092-1168mm) 43″- 46″ (1092-1168mm) 43″- 46″ (1092-1168mm)
    Lifting Capacity 14,000 lbs. (6350kg) 14,000 lbs. (6350kg) 14,000 lbs. (6350kg)
    Motor 2 HP 2 HP 2 HP
    Motor Shockwave 5 HP 5 HP 5 HP
    Batteries Not Included 2 Standard Group 24 2 Standard Group 24 2 Standard Group 24
    Voltage Single Phase 208v-230v 208v-230v 208v-230v
    Voltage with Shockwave 110V 110V 110V
    Time of Full Rise 65 seconds 65 seconds 65 seconds
    Full Rise/Decent Shockwave *** 35 secs./18 secs. 35 secs./18 secs. 35 secs./18 secs.
    Min. Bay Size 15’x23′ 15’x26′ 15’x28′

    S = Shorter length L = Standard length EL = Extended length

    SM14 lifts are available in blue and red.   RAL5005 RAL3002
    Additional colors maybe available – consult your Rotary® representative for details

    * Maximum wheelbase is based on a tire diameter of 29-1/2” (749mm)
    ** Narrow bay models available. Consult factory for min. bay size before ordering
    *** Actual rise and descent times may vary depending on weight of the vehicle
    † Length and / or width overall is 10 -1/2” longer with SHOCKWAVE power unit mounted on the side or front of column
