Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, the Rotary SMO14 four post auto lift is the right choice for maximum productivity.

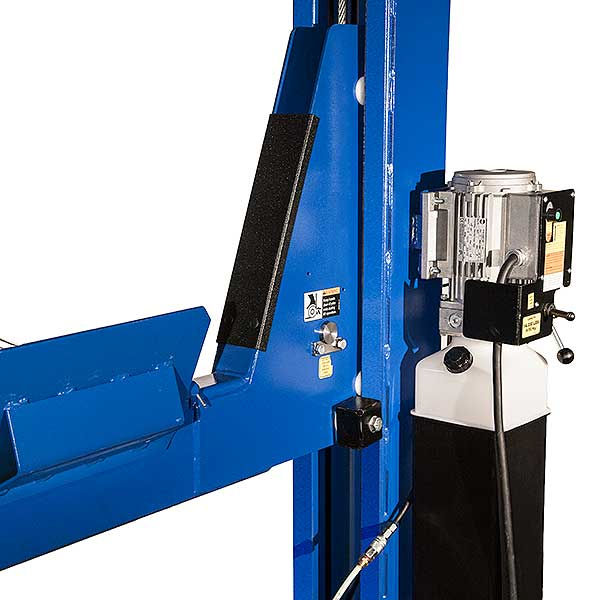

Rotary SMO14 | Open Front Lift

Available Colors
Optional Accessories
    • 14,000 lbs Capacity
    • Open-end design
    •  Cylinder located under the runway
    •  Dual function Sentinel Lock™ System
    •  Air Filter/Regulator/Lubricator
    •  Adjustable latch bars
    •  Single piece non-welded runway with tracks for rolling jacks
    •  ALI Gold Certified (SMO14SW-X)
  • Specifications

    Specification – SMO14 SMO14-L SMO14-EL SMO14SW-L SMO14SW-EL
    Max. Wheelbase 182″ 215″ 182″ 215″
    Rise 78 3/4″ 78 3/4″ 73 3/4″ 73 3/4″
    Length Overall 21′ 1″ 23′ 10″ 22′ 23′ 8″
    Width Overall 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
    Inside of Columns 116 1/4″ 116 1/4″ 116 1/4″ 116 1/4″
    Between Front and Rear Columns 194 3/4″ 227 3/4″ 194 3/4″ 227 3/4″
    Height of Columns 9′ 1 1/16″ 9′ 1 1/16″ 9′ 1 1/16″ 9′ 1 1/16″
    Width of Runways 20″ 20″ 20″ 20″
    Height of Runways 7″ 7″ 7″ 7″
    Width Between Runways 43″ 43″ 43″ 43″
    Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs. 14,000 lbs.
    Motor 2 HP 2 HP 5 HP 5 HP
    Voltage Single Phase 208v-230v 208v-230v 110V 110V
    Time of Full Rise 65 seconds 65 seconds 35 seconds 35 seconds
    Time of Full Descent     18 seconds 18 seconds
    Min. Bay Size 15’x26′ 15’x28′ 15’x26′ 15’x28′
